Industrial Power Cord Twist Tester Cable Testing Equipment IEC884 - 1 Standard

Name: Industrial Power Cord Twist Tester Cable Testing Equipment IEC884 1 Standard
Brand: Kingpo
Price: 1 USD

Brand Name : Kingpo

Model Number : JB-4253

Certification : Calibration Certificate

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Packaging Details : safety carton pack or plywood box

Standard : IEC884-1, GB2099.1

Function : Test twist resistance of power cord

Rotary plate : φ500mm with thickness 10mm

Twisting speed : 10~40n/min

Twisting angle : 45°, 60°, 90°each side adjustable

Space of anti-swing rod : 40mm

Delivery Time : 25 working days

Supply Ability : 3 sets per month

Contact Now

IEC884 - 1 Standard Industrial Power Cord Twist Tester Cable Testing Qquipment

Quick Details:

Alternative name	power cord twist tester
Function	Test twist resistance of power cord
Feature	Electric drive
Weight	55kg
Volume	42.5×16×100cm
Test standard	IEC884-1, GB2099.1

Product Summary:

The power cord twist tester is used to test twisting resistance of power cord. It is suitable for some electric appliance with supply cord such as connectors, hair drier, and vacuum cleaner. Fix the electric appliance on the rotary plate, make the outlet of power cord arm at center of plate, vertically pull down the cord and hang a weight. Preset twisting speed, angle from side to side, and times. Start plate and do twisting test.The tester will automatically stop when it get the set times, then check damaged degree and breaking rate of conductor wire.

Corresponding Standard:

IEC884-1, GB2099.1

Technical Parameter:

Model	JB-4253
Rotary plate	φ500mm with thickness 10mm
Load	300g, 500g
Twisting speed	10~40n/min
Twisting angle	45°, 60°, 90°each side adjustable
Space of anti-swing rod	40mm
Counter	3 figures, 0-999 times
Volume (W x D x H)	83×75×114cm
Weight	170kg
Power	1∮,AC220V,5A

Product Tags:

Flexing Test Apparatus

Bend Test Machine

Wholesale Industrial Power Cord Twist Tester Cable Testing Equipment IEC884 - 1 Standard from china suppliers

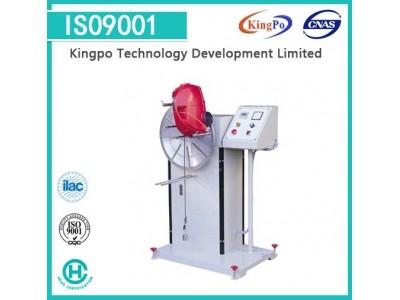

Industrial Power Cord Twist Tester Cable Testing Equipment IEC884 - 1 Standard Images
